Formuler Z10 Pro Max
Formuler Z10 Pro Max
**This product has been discontinued and has been replaced by the Z11 Pro Max.**
Easily watch high quality content on the big-screen with the all-new Formuler Z10 Pro Max. 4GB RAM allows you to run the most demanding apps with ease. Embedded Widevine Level 1 DRM unlocks access to premium and Ultra High-Definition contents.
Specifications
Output Resolution: 4K (3840 x 2160)
CPU : Realtek RTD1319
GPU : ARM G31 MP2
RAM: 4GB DDR4 @2400MHz
Storage: 32GB eMMC
Operating System : Android 10
Networking
Wireless : Dual-Band 2x2 AC Wireless
BT : 5.0
Ethernet : 1000M (Gigabit)
Decoder
Video decoder : 4K@60fps, AV1, H.265(HEVC), AVS, H.264(AVC,MVC), Real, MPEG1/2/4, VC-1
Audio decoder : MPEG-1 Layer 1,2,3(2-CH), MPEG-2 Layer 1,2, HE AAC V1/V2
Support Language: Global
DRM : Widevine L1, L3
Dimensions
Length: 105mm
Width: 105mm
Thickness: 21mm
Color: Black

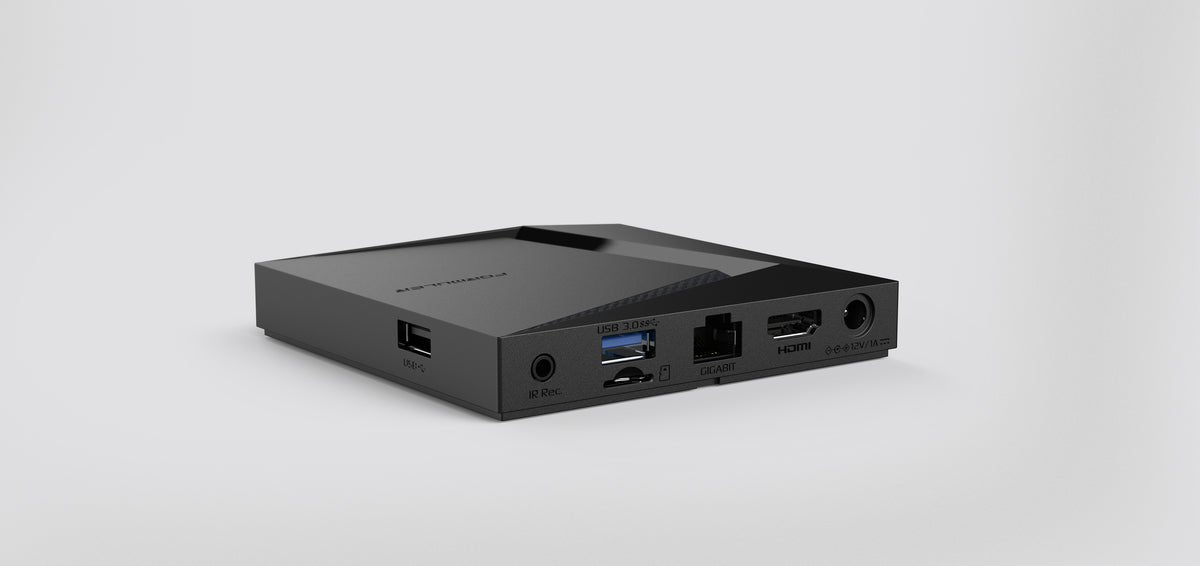

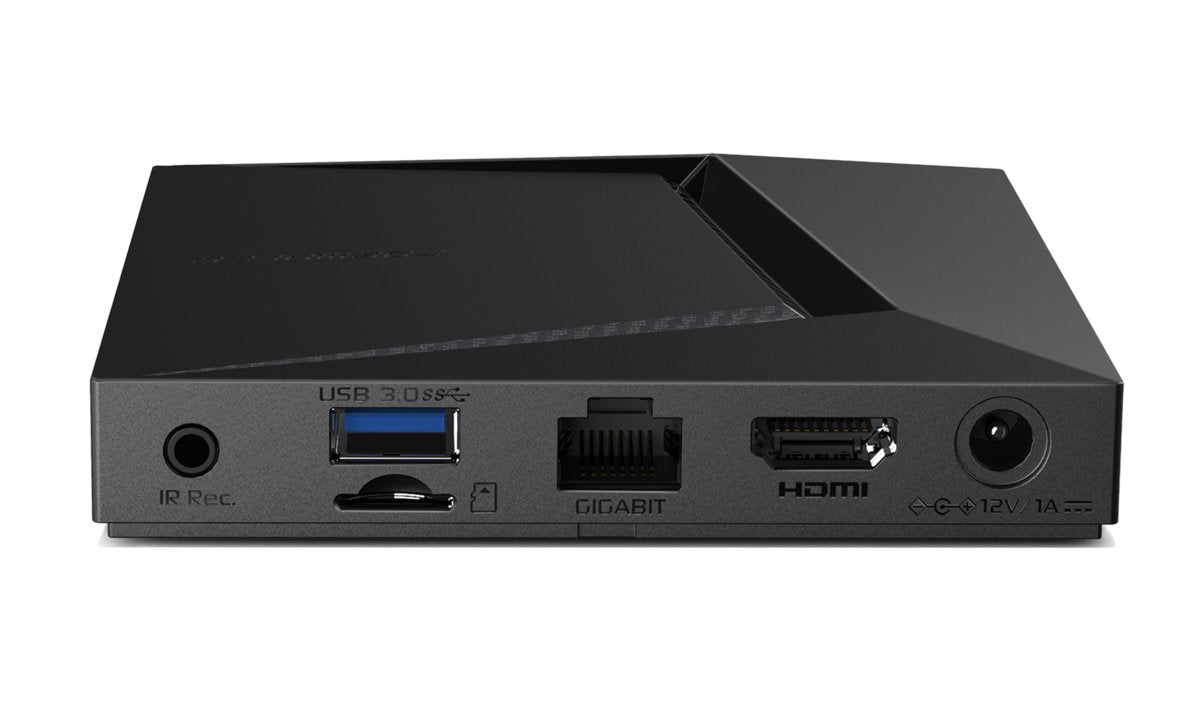

Ports
Power Input : 1
USB3.0 : 1
USB2.0 : 1
HDMI : 1
Gigabit LAN : 1
Micro SD Card : 1
IR Extension : 1
Power input
Power rating : 12VDC / 1A
Power Consumption : Max. 12W
Standby Power : Max. 0.5W (Ultra low power)
Optional
ATSC USB Tuners:
- Hauppauge WinTV-HVR-955Q (2040:b123)
- Hauppauge WinTV-HVR-955Q (2040:b150)
- Hauppauge WinTV-dualHD (2040:026d)
DVB-T USB Tuners:
- Hauppauge WinTV-dualHD (2040:0265)
- Geniatech MyGica T230 Black (0572:689A)
- Geniatech OEM T230 White (0572:c68a)

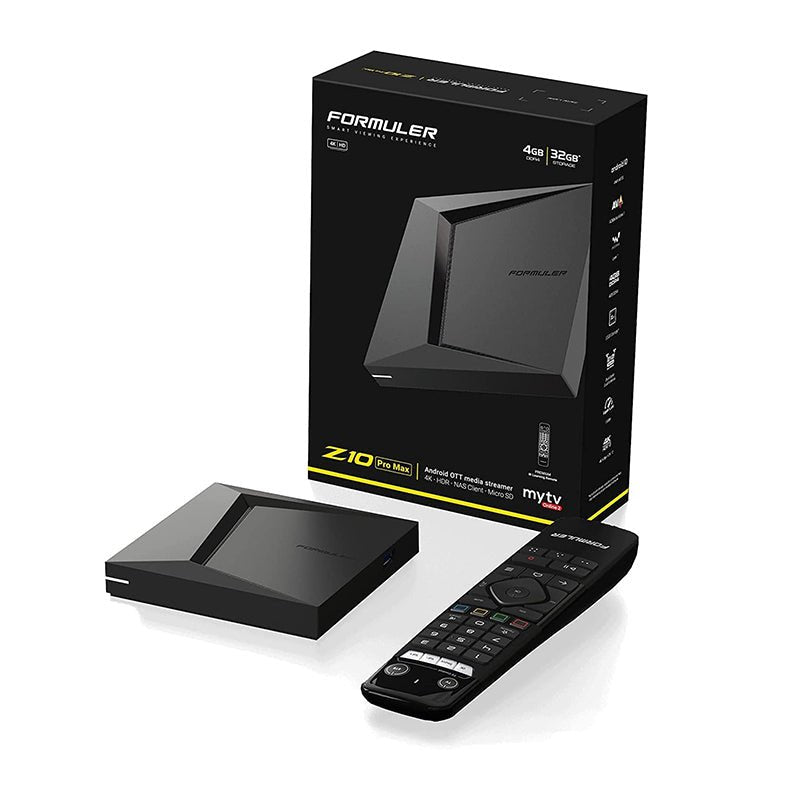

What's in the box
Formuler Z10 Pro Max
Remote Control
HDMI Cable
Remote Control Extender
Power adapter
Batteries
Quick Setup Guide
